portable multi-channel audio mixing console integrated directly into a rugged, protective hardshell carrying case.
Here is a breakdown of its layout and key features based on the visual details:

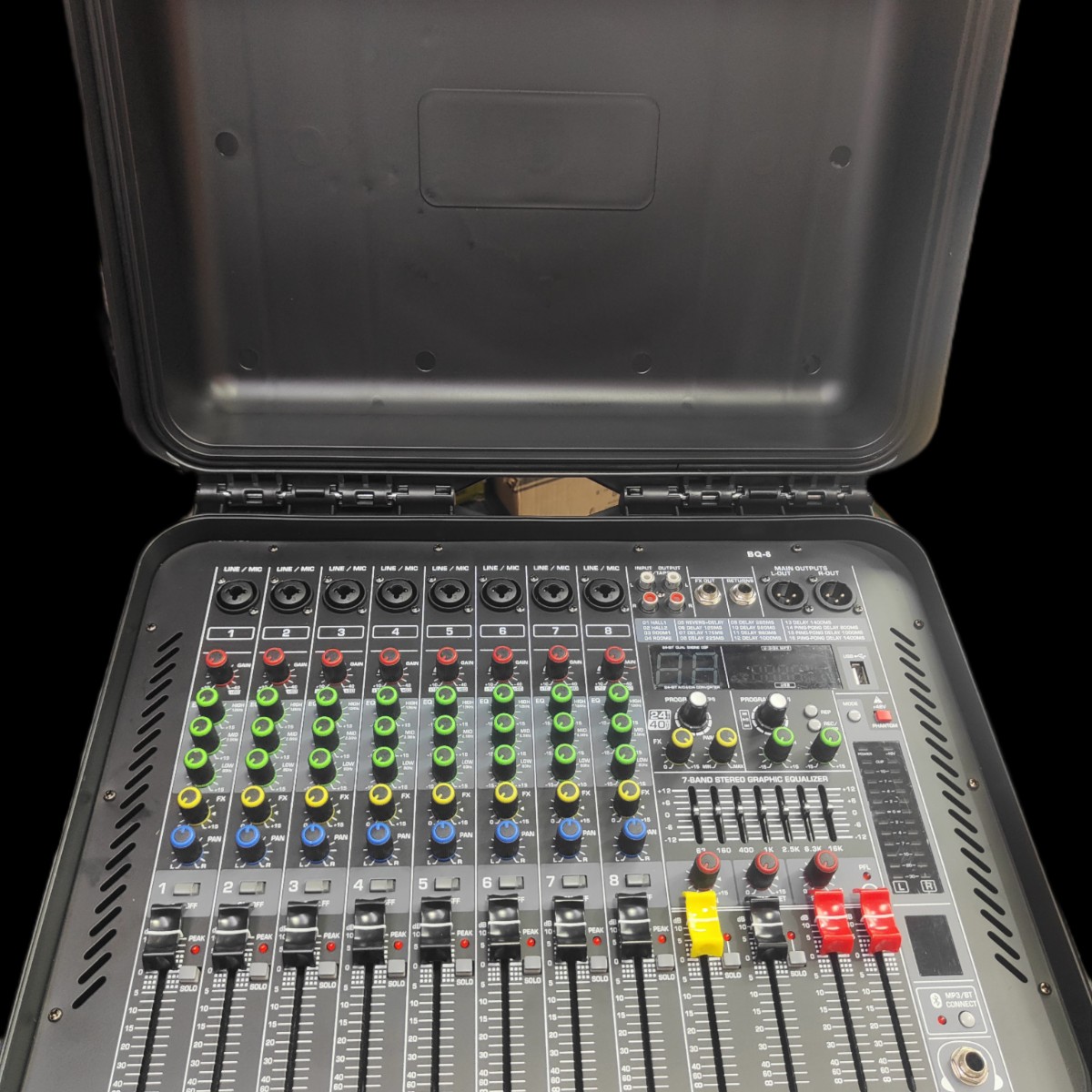

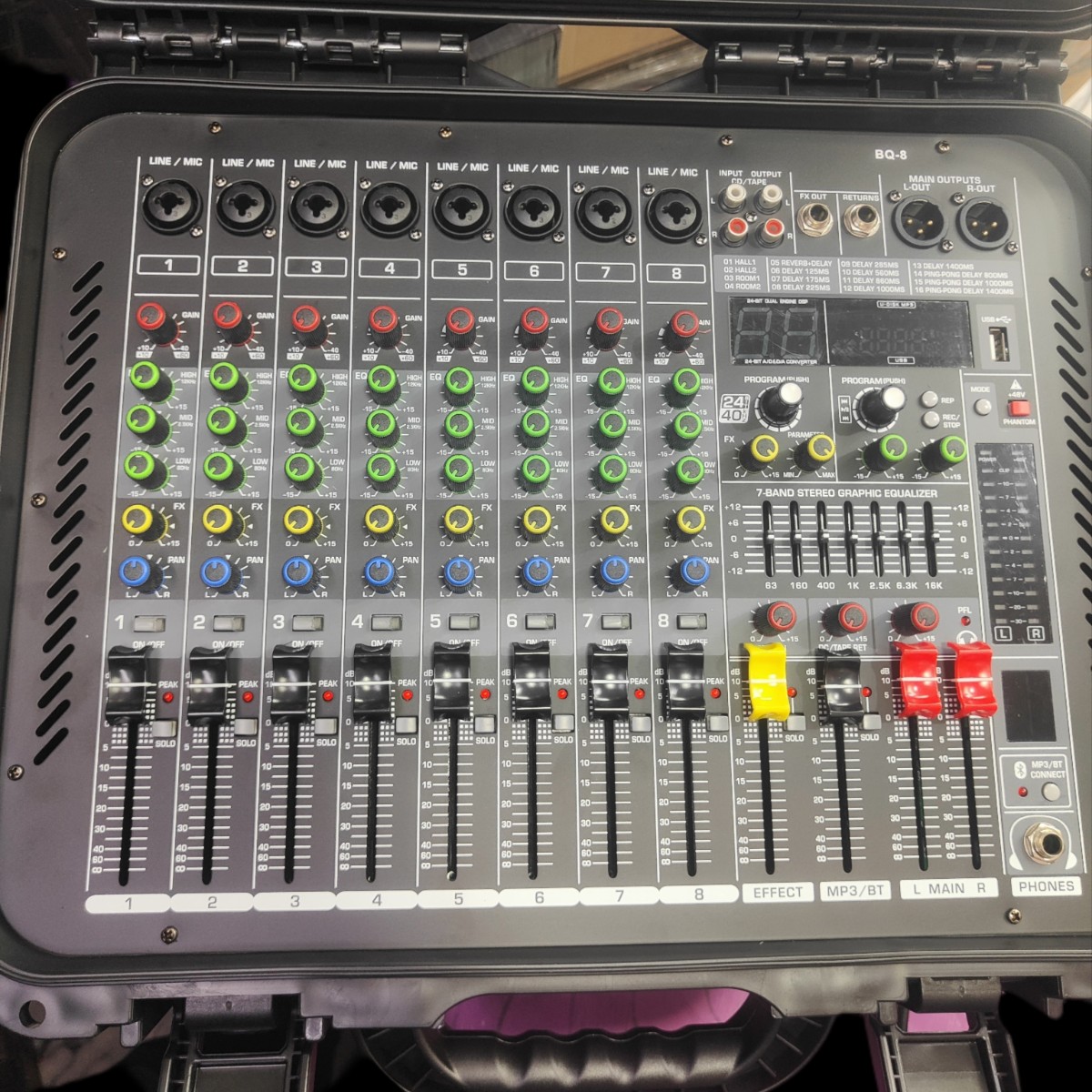

1. Input Channels (Left Side)
8 Mono Channels: Numbered 1 through 8 across the left side.
Combo Inputs: Each channel features a top-row combo jack that accepts both 3-pin XLR (for microphones) and 1/4-inch TRS/TS plugs (for instruments or line-level signals).
Channel Control Knobs (Per Channel):
Red (Top): Gain control to adjust the initial input signal level.
Green (Middle): 3-band Equalizer (EQ) for adjusting High, Mid, and Low frequencies.
Yellow: FX/Effect send level, determining how much of that channel's sound goes to the internal effects processor.
Blue (Bottom): Pan control to shift the sound between the Left and Right main outputs.
Faders and Buttons: Each channel has its own long-throw volume fader, accompanied by a Mute/Mute-LED indicator and a Solo/PFL button for isolated monitoring.
2. Master & Control Section (Right Side)
Digital Display & FX: Features a digital screen (showing "88" preset indicators) used for managing the built-in 24-bit/40kHz DSP effects processor (such as delay, reverb, etc.).
Graphic Equalizer: A 7-band stereo graphic equalizer slider array in the center allows for fine-tuning the overall master output frequency curve to match the room acoustics.
Media Player: Includes a USB port and control buttons for built-in MP3 playback, alongside a Bluetooth connection indicator button ("MP3/BT CONNECT").
Master Faders: Distinctly colored faders control the final output levels:
Yellow Fader: Controls the total internal Effect return level.
Black Fader: Controls the MP3/Bluetooth playback volume.
Red Faders: Dual faders for the independent Left (L) and Right (R) Main stereo outputs.
3. Master Outputs & Connectivity (Top Right)
Main Outputs: Features both balanced XLR outputs and 1/4-inch jack outputs for routing the final mix to powered speakers or an amplifier.
RCA Inputs/Outputs: Includes red and white RCA tape/line inputs and outputs for external recording or playback devices.
Headphone Jack: Located at the bottom right corner ("PHONES") with a dedicated volume knob nearby for local monitoring.
Design and Portability

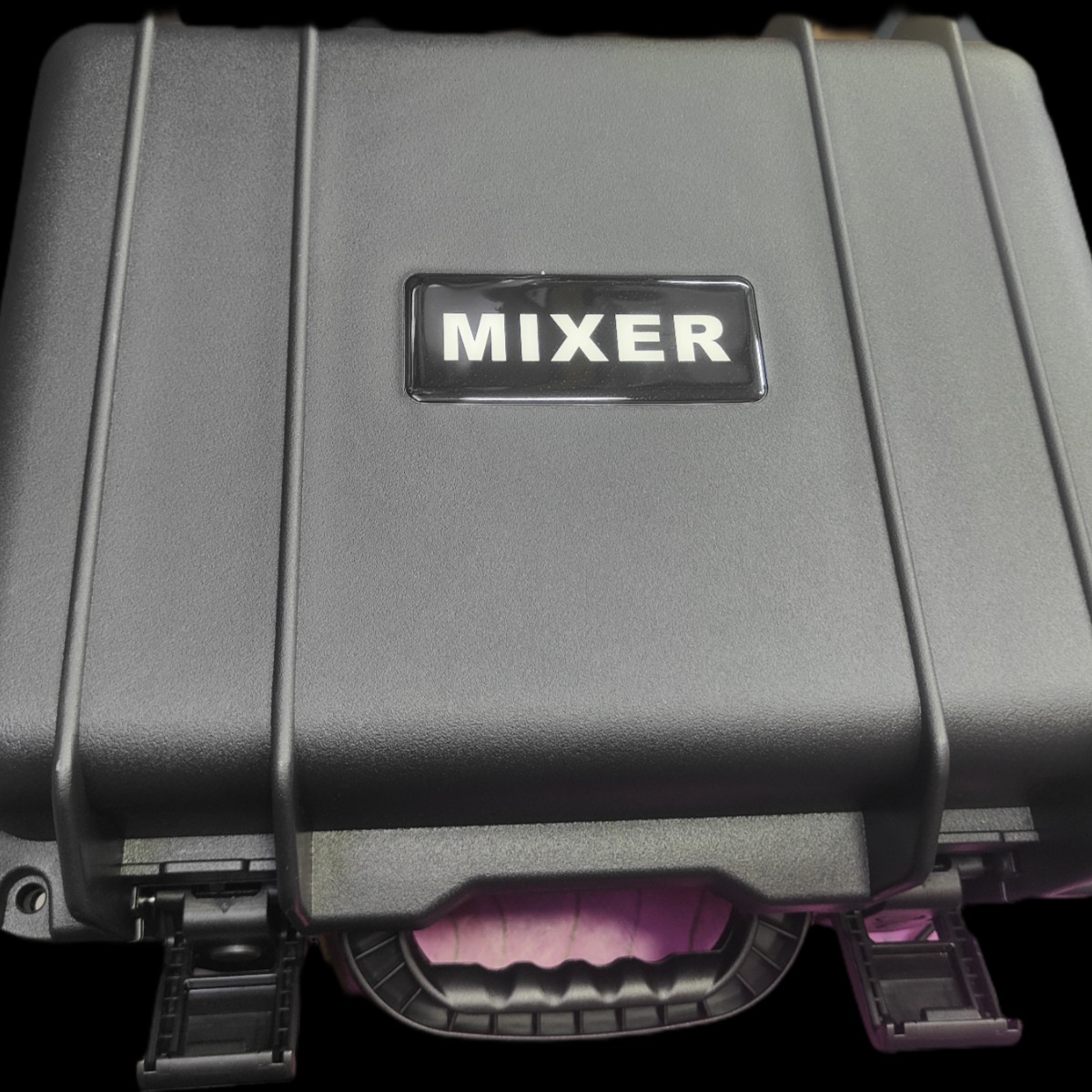

The entire mixer is built into the bottom half of a heavy-duty plastic or composite flight case. The top lid can close over the unit, securing it with latches for easy transport, making it an all-in-one solution for mobile DJs, small live bands, public address (PA) setups, or corporate events.
